In the field of aerospace, the design, R & D, finalization and commercialization of airborne products often go through a long process. Before the product finalization, it is necessary to verify the performance and related parameters of airborne products, and realize the upgrading and optimization of products, so as to meet the requirements of actual application scenarios.
Compared with the general ground environment test and ground performance test, the hanging flight test of scientific research products is closer to the actual application scenario, and it is a necessary link in the performance test of airborne scientific research products. UAV, as a platform for the verification and test of the above products, is favored for its low cost and strong operability.
Recently, the hc-530 fixed wing UAV of honeycomb Aeronautics and Astronautics Co., Ltd, The flight test and flight service of autopilot has been successfully completed in a certain place in Beijing. The flight technical indicators meet the requirements of the program, and the test task has been successfully completed.

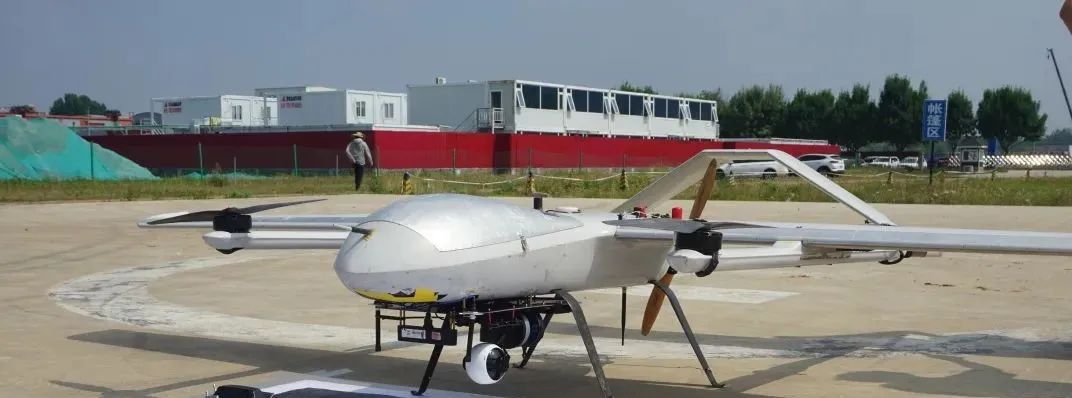

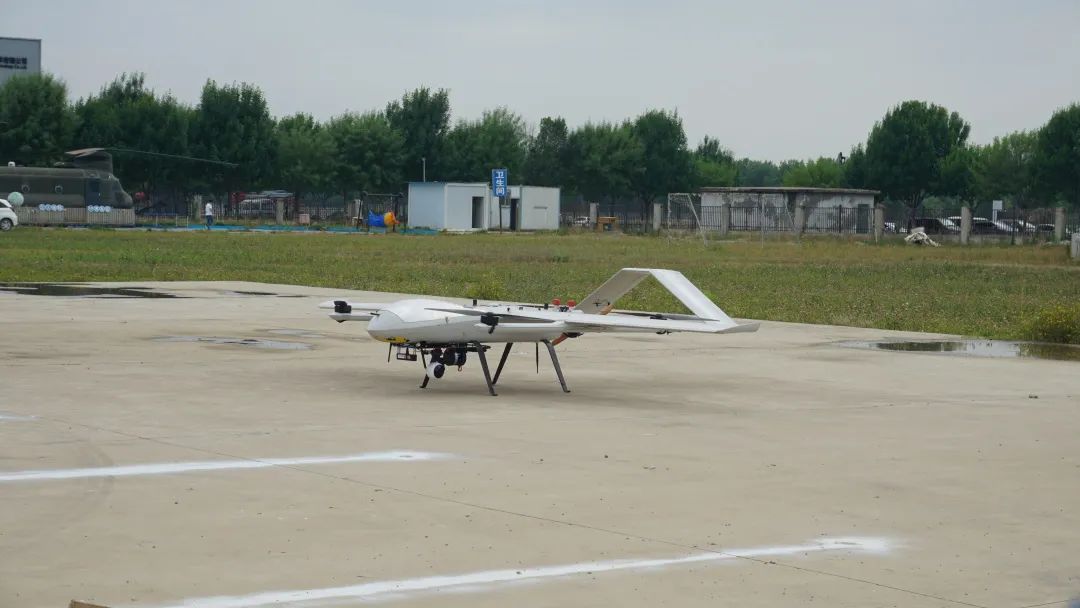

Hc-530 vertical takeoff and landing fixed wing UAV is selected for this mission, which is a high-performance UAV system developed for special take-off and landing environment. With high reliability and convenient handling, the maximum take-off weight is 55kg and the maximum load is 18kg, The fastest flight speed is 144km / h The maximum flight altitude can reach 3000 meters.

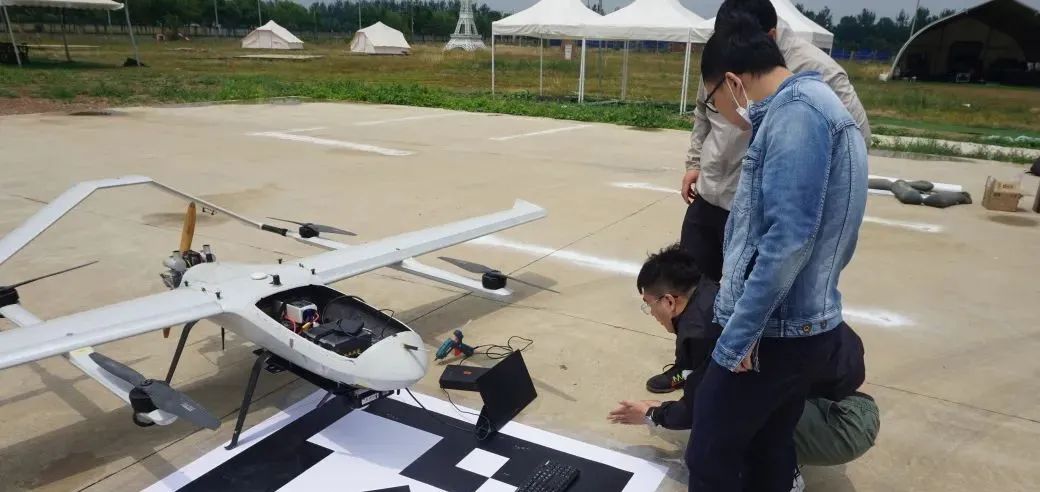

According to the requirements of the flying task, the UAV is refitted and the relevant flight control interface is connected to meet the requirements of autopilot installation and data acquisition on the aircraft, which plays a very important role in the verification of the performance and parameters of its airborne equipment.

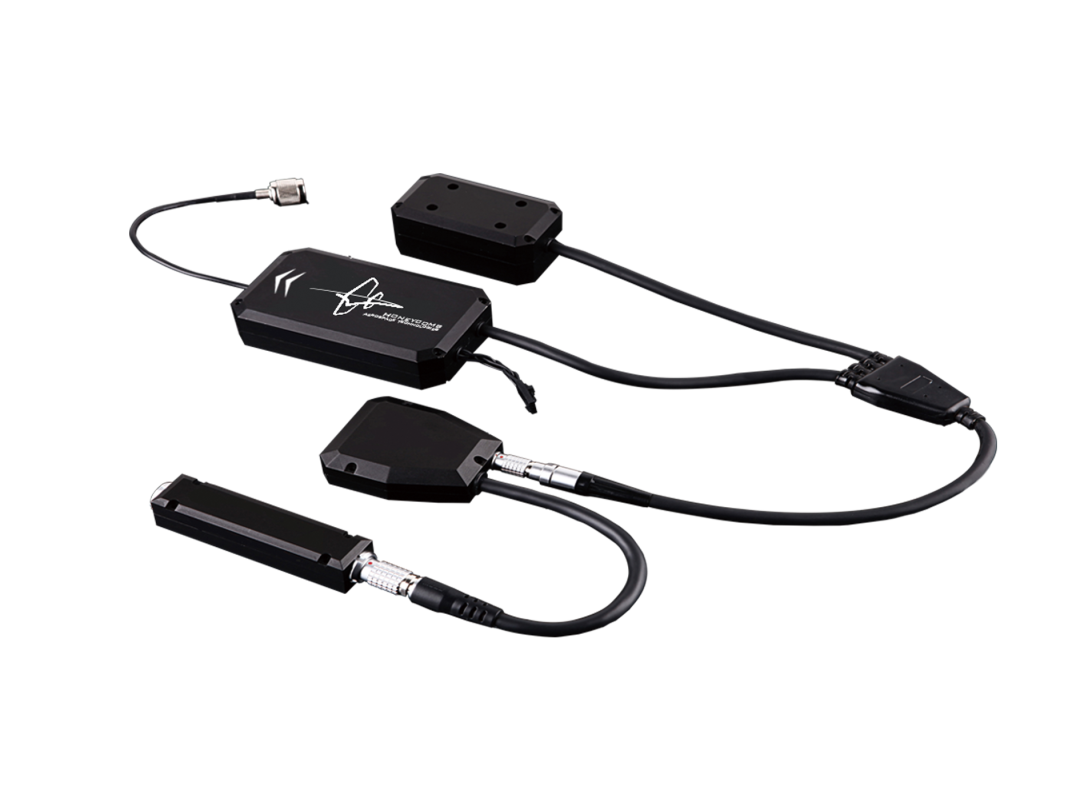

Honeycomb space breaks the original hardware framework and design rules The flight control hardware is customized according to the customer's requirements, and the access of autopilot equipment is realized by opening the bottom AFC mode control interface. Customers can carry out functions, size, power supply, interface, external, etc. on the basis of standard configuration Extension.
AFC mode is flight control, opening the bottom control interface of angle loop and speed loop. Can bus is used to transmit status information and control commands between flight control system and autopilot. The flight control receives the command from the external autopilot to complete the specified flight action.

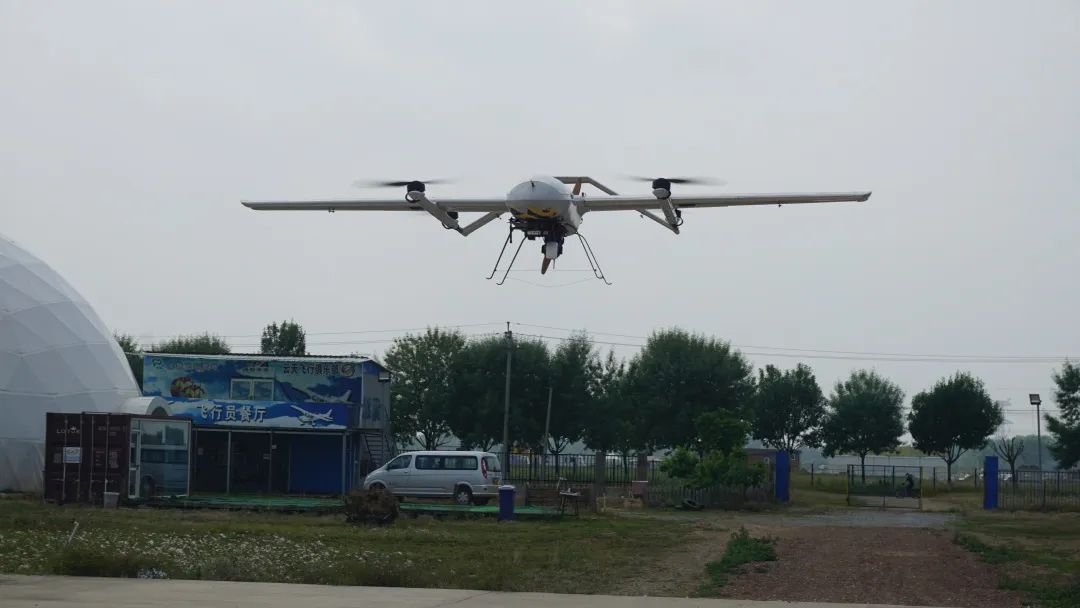

Hc-530 UAV mount Laser radar, airborne computer, camera and other equipment. Through taking off and landing, hovering, route mission flight and other test methods, automatic return, accurate landing, data disconnection, power on detection and startup, real-time monitoring of ground station, emergency landing and other test items and necessary data collection are completed. The UAV has reached the domestic advanced level in terms of load, navigation time, wind resistance, control stability, etc. During the test process, the flight parameters of hc-530 UAV performed well, and successfully completed the operation requirements of the autopilot.
Honeycomb Aerospace provides customized and integrated solutions for UAV system according to customers' requirements. It has advanced UAV flight control, data transmission and communication, mission carrying system and other independent research and development capabilities and a number of independent core intellectual property rights in the industry. It can meet different customization requirements, ensure technology and product leadership, and let customers easily own their own UAVs, and add code UAV blue ocean.
Honeycomb Aerospace also has hc-140, hc-540 and other UAVs suitable for customized service. We adhere to the customer's actual experience as the priority, pursue the deep synchronization and integration of technology and application, carry out technical iteration, provide customers with better choices, and launch customized UAV solutions to meet the urgent needs of customers for high precision and high data security.
HC-140 The oil powered fixed wing UAV system is a long endurance fixed wing UAV with large load. The whole UAV is made of carbon fiber composite, The maximum take-off weight is 150kg, the payload is 30kg, the fastest flight speed is 144km / h, and the maximum endurance is 6 hours, It has the characteristics of stable flight, simple control, long flight time and high flight efficiency.

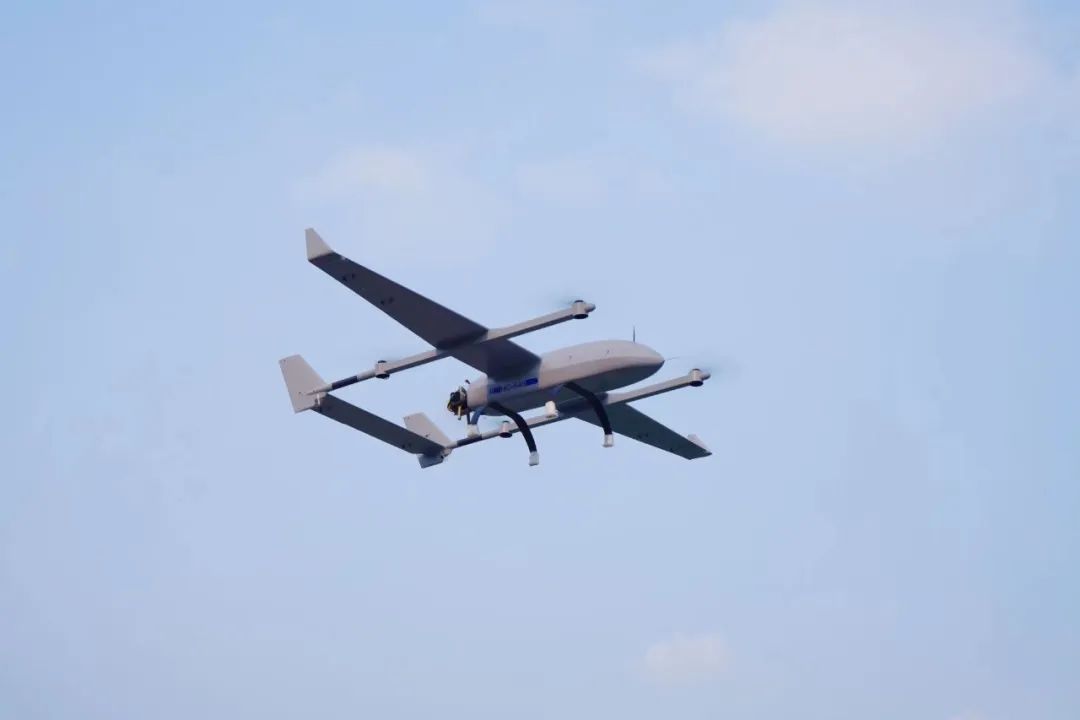

HC-540 It is a large vertical take-off and landing fixed wing UAV with general mounting capability, which adopts hybrid electric and oil system, The maximum take-off weight is 150kg and the payload is 30kg, which is the fastest The flight speed is 162km / h, Maximum endurance up to 8 hours It can carry different mission loads to complete normal inspection, 2D / 3D aerial survey, special equipment transportation and other tasks. The platform has full autonomous flight capability, and can carry missile launching equipment to accurately track targets.
Honeycomb aerospace is a high-tech enterprise engaged in UAV R & D, production and marketing. It has been committed to UAV R & D, production and marketing, and provides UAV system customized integration solutions. In the future, we will continue to maintain innovation, increase R & D investment and technological innovation, strengthen the cultivation of scientific and technological talents, refine the core technology of enterprises, provide intelligent and efficient services for customers, and help promote the development of UAV industry!
