HC-325 four-rotor UAV-Honeycomb UAV

HC-325 four-rotor UAV

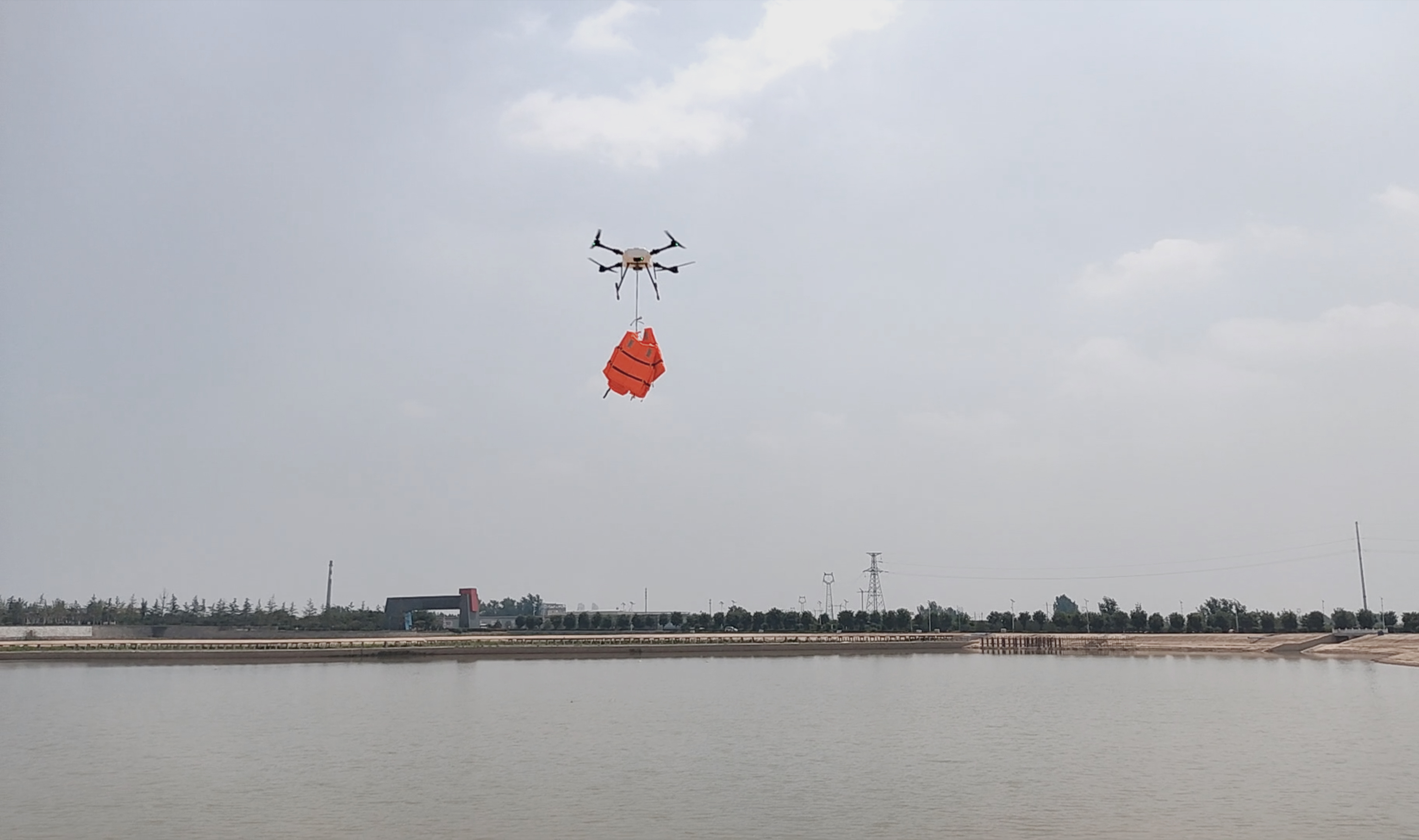

Disaster reconnaissance, mission accomplished

★ The products are subject to the real products sold in the market ★

Advantages and features

The HC-325 has a four-rotor layout, folding design, easy transportation, and takes up little space. It has the ability of multi-rotor hovering, autonomous takeoff and landing and route planning, supporting semi-autonomous flight beyond visual range, fast takeoff and landing, high-precision inspection, and is suitable for a variety of complex emergency operating environments.

Max payload 3kg
70min (2kg payload)
Semi-solid lithium battery
Multi-GPS redundant design
Autonomous flight beyond visual range
Compatible with multiple payload platforms

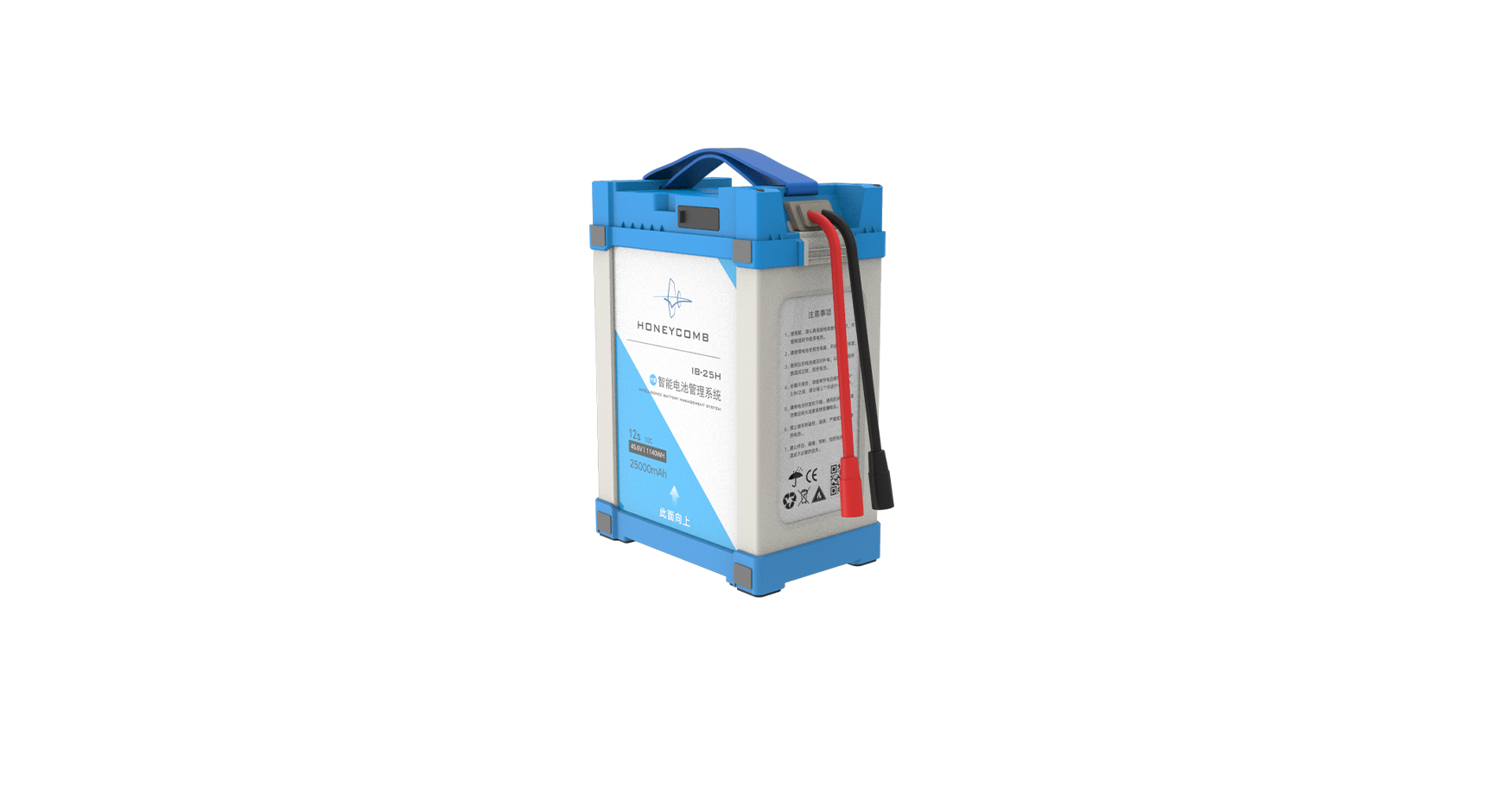

Semi-solid lithium battery

Reliable guarantee for flight operation

Honeycomb Aerospace UAVs use semi-solid lithium batteries, compared with traditional batteries, battery performance and safety improved by 30-35%, fully guarantee the UAV flight operations.

Strong adaptability, mission diversification

Mountable payload

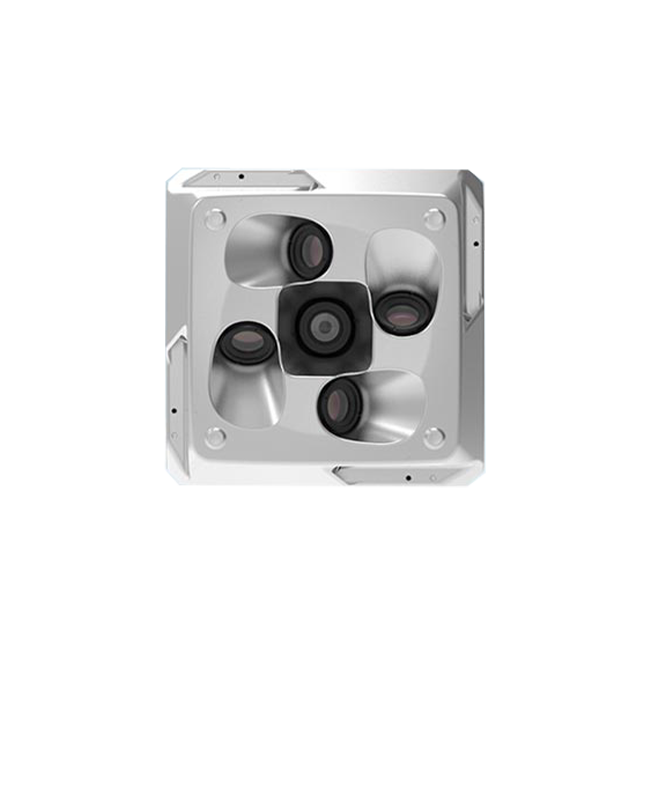

Rapid 3D modeling payload

Full frame tilt camera, combined with advanced photography technology and innovative design, has excellent performance and functions, making the acquisition of disaster area real data more accurate and comprehensive. Whether it is the buildings, roads, terrain or other geomorphic features of the disaster area, it can capture a picture of rich detail.

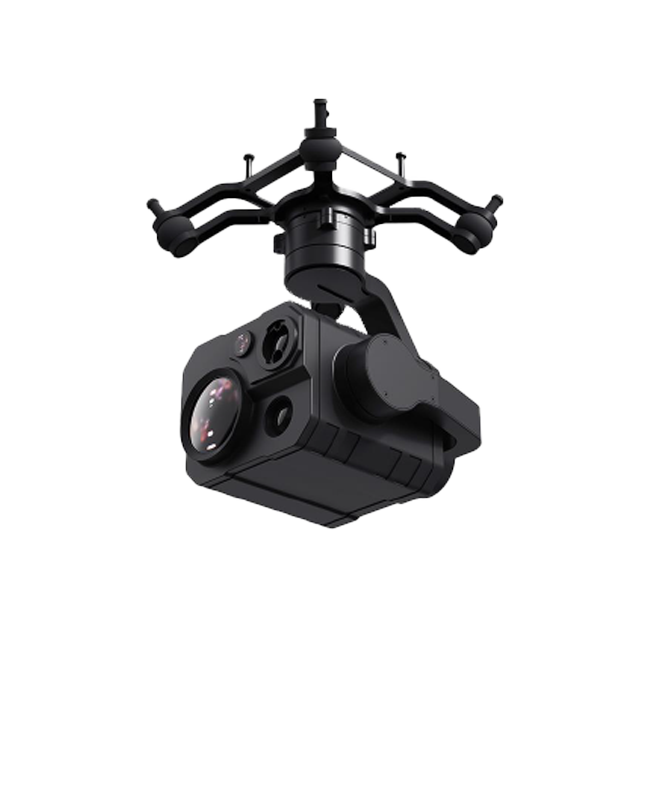

Three-lens camera

The three-lens camera is a four-sensor mixing camera, zoom camera, thermal imaging camera, laser rangefinder, and wide-angle camera efficient collaboration. The three-lens camera is a four-sensor hybrid camera, zoom camera, thermal imaging camera, laser rangefinder, and wide-angle camera efficient collaboration. It is equipped with 640×512 high resolution thermal imaging sensor, 1200m high precision laser ranging, 180x hybrid zoom and 30x optical zoom. (1/2.7 inch SONY CMOS supports 4k level video recording and photography), 2K ultra-wide Angle, powerful AI tracking and recognition function based on neural network processor, infinite rotation of heading axis, upgraded version of shock absorption quick-release structure, rich gimbal control interface can be compatible with third-party link products, The high-precision and high-coordination control algorithm maintains stable zoom and imaging effects in flight.

Rapid 3D modeling payload

Three-lens camera

HC-325
Intelligent power system

The HC-325 is equipped with a semi-solid lithium battery module and has a max flight time of 70min with a 2kg payload

70min (2kg payload)
Flight time

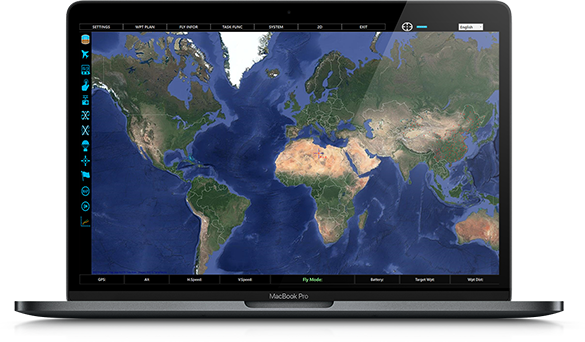

Intelligent flight control system

With multi-rotor hovering, autonomous take-off and landing and route planning, support automatic flight beyond visual range; support online switching flight mode (automatic/manual); able to control the attitude, altitude, heading, position and other flight states of the aircraft, to achieve stable and reliable automatic flight; dual control mode can adjust the flight plan at any time (based on the waypoints); external digital radio; adopting dual GPS and dual IMU to realize system redundancy and backup; with multiple no-fly zones function limitations.
